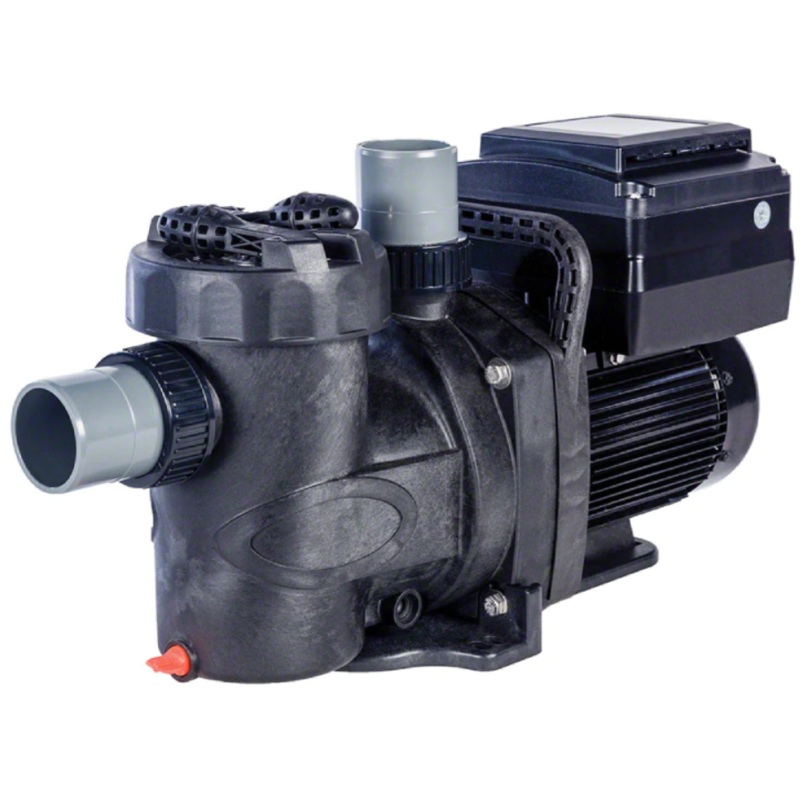

General Features of Nautica Series Pumps:

The Nautica pump series saves you time & money while making your aquatic system more energy efficient and is a direct drop-in replacement for existing installations with other name brand pumps.

Single Speed (0.75 to 3.5 HP); single-phase & 3-phase options available

Variable Speed (1.65 & 2.7 THP)

Easily serviceable 4-bolt design & handle with the following 56 frame motor options:

This series of self-priming pumps come complete with a unique 20mm SiC/SiC +Viton mechanical shaft seal.

Lid lock ring that incorporates handles. These handles provide the user with a convenient way to easily remove the lid.

Suction and Discharge comes equipped with 2″ quick disconnect unions as well as internal threads for easy installation and maintenance.

Every pump is performance tested before leaving the factory.

Features Specific to the 1.1 THP Variable Speed Motor

Pump is equipped with a 1.1 THP variable speed motor.

3 Adjustable Power Levels – Levels can be set to range from 50 Watts/1000 RPM to 1000 Watts/3500 RPM (in increments of 10 Watts).

Motor runs on a wide voltage range 100-130/200-250V. Automatically detects 115 or 230V.

Features Specific to the 1.65 THP Variable Speed Motor

1.65 THP motor comes complete with built-in controller

Variable speed control, ranging from 600 to 3450 RPM

Approximate Dimensions (L x W x H): 27.2 x 10 x 13.6

Features Specific to the 2.7 THP Variable Speed Motor

2.7 THP Variable Speed motor with built-in easy to use controller LCD screen.

RPM levels can be set to range from 600 to 3450.

Approximate Dimensions (L x W x H): 28.5 x 10 x 13.6
