Description

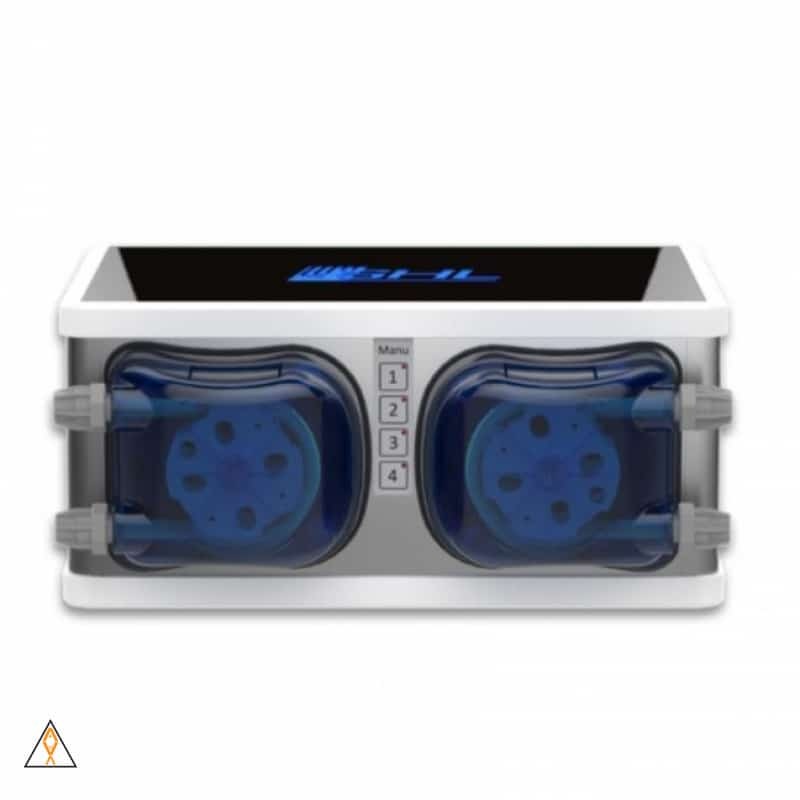

Meet GHL Doser Maxi.

As with all GHL products, the GHL Doser Maxi is built on the proven framework that earned GHL its global recognition for ultimate reliability and performance. GHL Doser Maxi was designed for hobbyists and professionals who look for a reliable way to transport larger volumes of water. With two brushless stepper motors rated for max 350ml/min, the Maxi doser is perfect for ATO, AWC, and more.

Specifications

The GHL DoserMaxi Slaveneeds to be controlled via a ProfiLux Controller or aGHL Doser Maxi Stand Alone(with integrated control electronics). Control via a GHL Doser 2.1 Stand Alone is also possible.

The24V stepper motors allow precise dosing.The connectioncan be made via WiFi, LAN, or USB.

The system is expandable to a total of 16 pumps.TheProfiLux Aquatic Bus provides reliable and interference-free data transfer, even over long distancesup to100 m (300 ft.).

Perfect for AWC and Continuous-use

Take the work out of manual water changes and let the GHL Doser Maxi do it for you. Conveniently schedule automatic water changes or trigger them as-needed.

The brushless stepper motors are built and ready to withstand larger volume water changes. As with other peristaltic pumps which require a cool-down period, the Doser Maxis stepper motors can be run continuously for longer periods without needing a cooling period. For example, you can transport water for a water change at one time without needing a cooling period. Pumps are suitable for moving approximately 16,000 Liters (4,226 gal) of water.

No controller required!

The GHL Doser Maxi will be offered as a Standalone or Slave model.

• The Maxi Standalone doser is perfect for those whodo not owna ProfiLux 3, ProfiLux 4, Doser 2.1 SA or Doser 2 SA.
• The Maxi Slave doser seamlessly ties into an existing Doser 2.0 / 2.1 SA or ProfiLux 3 / 4 eco-system.

Backwards compatibility

ProfiLux 3 and Doser 2.0 SA owners can also add one or several Maxi dosers to their system and benefit from all that the product has to offer.

Product flexibility like no other

The GHL Doser2.1 and Maxi can be combined, Standalone and Slave in any combination. Same rules apply to those who have a ProfiLux 3 or 4 controller; all slave pumps can be controlled.

Standalone Maxi dosers can easily be converted to operate as a slave unit.

Features

With the exception of the larger motors, GHL Doser maxi includes many of the familiar features found on the GHL Doser 2.1 models.

• Built-in WiFi and myGHL cloud support (Standalone only)
• Built-in Level ports for float and/or optical sensors (Standalone only)
• Quiet brushless motors
• Speed-adjustable motors (Maxi doser Up to 320ml/min)
• On-board manual override buttons
• Magnetic Stirrer ports
• Fluid monitoring

Dimensions

• 8.66 L x 5.9 W x 4.06 (w/out pumps)

Whats included

• GHL Doser Maxi Slave
• 24V power supply
